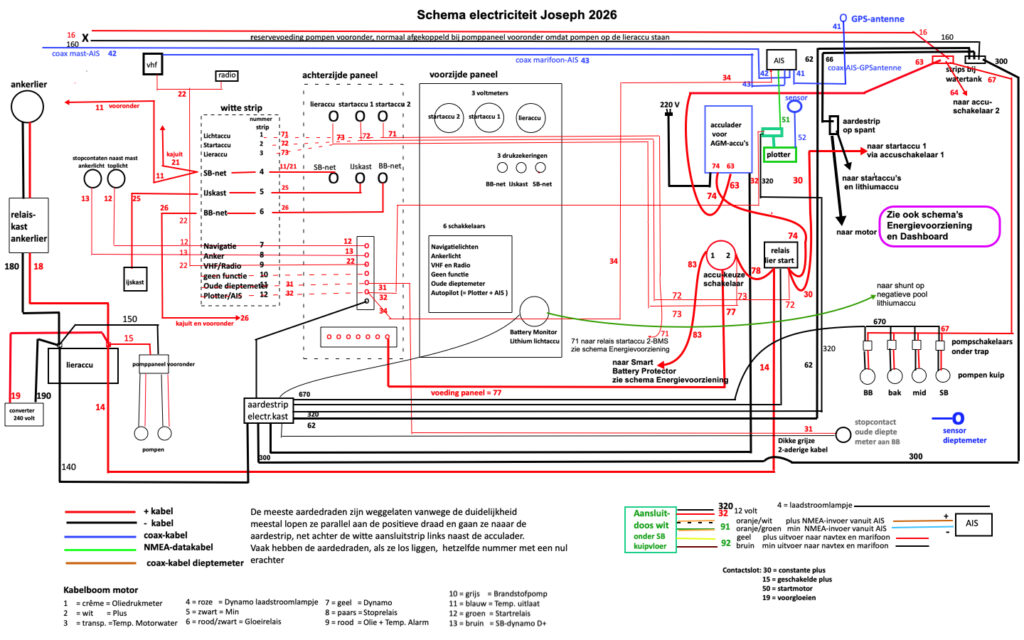

Kabelnummering
Kabel Van Naar
| 1 | Accukeuzeschakelaar | B+ SB alternator via relais op spant achter dashboard |
| 11 | Schakelpaneel SB-net | Vooronder |
| 12 | Schakelpaneel Navigatielicht | Stopcontact vooronder |
| 13 | Schakelpaneel Ankerlicht | Stopcontact vooronder |
| 14 | Lieraccu | Cyrix oplaadrelais in E-Kast |
| 15 | Lieraccu | Pomppaneel aan de mast |
| 16 | Strip bij Watertank SB | Vooronder = reservekabel |
| 18 | Lieraccu | Relaiskast ankerlier |
| 19 | Lieraccu | Converter onder SB-kooi vooronder |
| 22 | Schakelpaneel VHF | VHF en radio via aansluitkastje boekenplank SB |
| 25 | Schakelpaneel Ijskast | Ijskast |
| 26 | Schakelpaneel BB-net | Kajuit BB |
| 30 | Relais Lier-Start | Startaccu 1 via Accukeuzeschakelaar Startmotor 1 |
| 31 | Schakelpaneel Heklicht | Stopcontact BB bij dashboard |
| 32 | Schakelpaneel Autopilot = Plotter en AIS | Plotter |
| 34 | Schakelpaneel Autopilot = Plotter en AIS | AIS |
| 41 | AIS coax | GPS-antenne op Schuifluik |
| 42 | AIS coax | Marifoonantenne via mast |
| 43 | AIS coax | marifoon |
| 51 | AIS = 15-aderige Gameportkabel Sub=D | Plotter |
| 52 | Plotter | Transducer = Dieptesensor |
| 62 | Aardestrip in E-Kast | Negatieve strip bij Watertank SB |
| 63 | AGM-acculader | Postieve Strip bij Watertank SB |
| 64 | Positieve strip bij Watertank SB | Accuschakelaar startmotor 2 |
| 66 | Aardestrip op spant SB | Aardestrip bij watertank SB |
| 67 | Postieve Strip bij Watertank SB | Pompschakelaars onder trapje |
| 68 | en 68a van Startaccu 2 | BMS via Wisselrelais |
| 69 | en 69b en 69c Lithium-accu | BMS via Hoofdschakelaar Lithiumaccu |
| 71 | Wisselrelais in E-Kast | Voltmeter Startaccu 2 op Paneel |
| 72 | Relais Startaccu-Lieraccu | Voltmeter Startaccu 1 op Paneel |
| 73 | Accukeuzeschakelaar in E-Kast | Voltmeter Lieraccu |
| 74 | AGM-acculader | Relais-Lier-Start in E-Kast |
| 76 | Cyrix-Licharge relais | Hoofdschakelaar Lithiumaccu |
| 77 | Accukeuzeschakelaar in E-Kast | Schakelpaneel |
| 78 | Accukeuzeschakelaar in E-Kast | Relais Lier-Start in E-Kast |
| 80 | Lion-accu | BMS |
| 81 | Lion-accu | BMS |
| 82 | Hoofdschakelaar lithium-accu | Smart BatteryProtect in E-Kast in |
| 83 | Accukeuzeschakelaar in E-Kast | Smart BatteryProtect in E-Kast out |
| 84 | Accuschakelaar startmotor 2 | Startaccu 2 |
| 85 | BMS | Cyrix-Licharge relais |
| 87 | Accuschakelaar startmotor 1 | Startaccu 1 |
| 88 | Shunt op Lithium- accu | Smart BatteryProtect in E-Kast in |
| 89 | Lithium-acculader | Cyrix-Licharge relais |
| 90 | Lithium-acculader | Aardestrip in E-Kast |
| 91 | AGM-acculader | Aardestrip in E-Kast |
| 92 | Batteryprotect | Aardestrip in E-Kast |
| 93 | Cyrix-Licharge relais | Aardestrip in E-Kast |
| 94 | BMS | Aardestrip in E-Kast |
| 95 | Wisselrelais in E-Kast | Relais op spant bij dashboard |
| 96 | Wisselrelais in E-Kast | Smart BatteryProtect in E-Kast in |
